π Day 2026 Art Posters - Art for the 5%
On March 14th celebrate `\pi` Day. Hug `\pi`—find a way to do it.
For those who favour `\tau=2\pi` will have to postpone celebrations until July 26th. That's what you get for thinking that `\pi` is wrong. I sympathize with this position and have `\tau` day art too!
If you're not into details, you may opt to party on July 22nd, which is `\pi` approximation day (`\pi` ≈ 22/7). It's 20% more accurate that the official `\pi` day!
Finally, if you believe that `\pi = 3`, you should read why `\pi` is not equal to 3.
Nature’s first green is gold,
Her hardest hue to hold.
— Robert Frost (Nothing Gold Can Stay)
Welcome to this year's celebration of `\pi` and mathematics.
The theme this year is a homage to Shinobu Ishihara (1879–1963) and embodies the Japanese saying "To show something, hide something.".
This year, the digits of `\pi` are discernable only by people with colorblindness. It's the only test where a negative is a positive!
This year's `\pi` poem is Nothing Gold Can Stay by Robert Frost.
This year's `\pi` day song is Colors by Laleh.
contents
If you can't see anything, you're ok.
If you can see something, you're not ok.
Mostly.
It's because you have a piercing stare.
People with normal color vision will always see more information than people affected by colour blindness. Depending on your committment, patters will reveal themselves to you eventually.
This year's art is for the 5% of you (men) out there that have colour deficiency due to shortage (or lack of) M-cones. This 5% makes up most of the population (about 8%) affected by some kind of colour deficiency.
That's a number that's not zero — it deserves its own art.
Colour blindness makes it difficult to distinguish certain colours and to buy clothes or choose matching curtains.
Depending on the degree of deficiency, your experience may vary from merely having trouble to being completely insensitive to colour differences.
Color pairs that give you troubles are called confusion colours (duh). Another term for them is metameric colours, but that's not as fun to say.

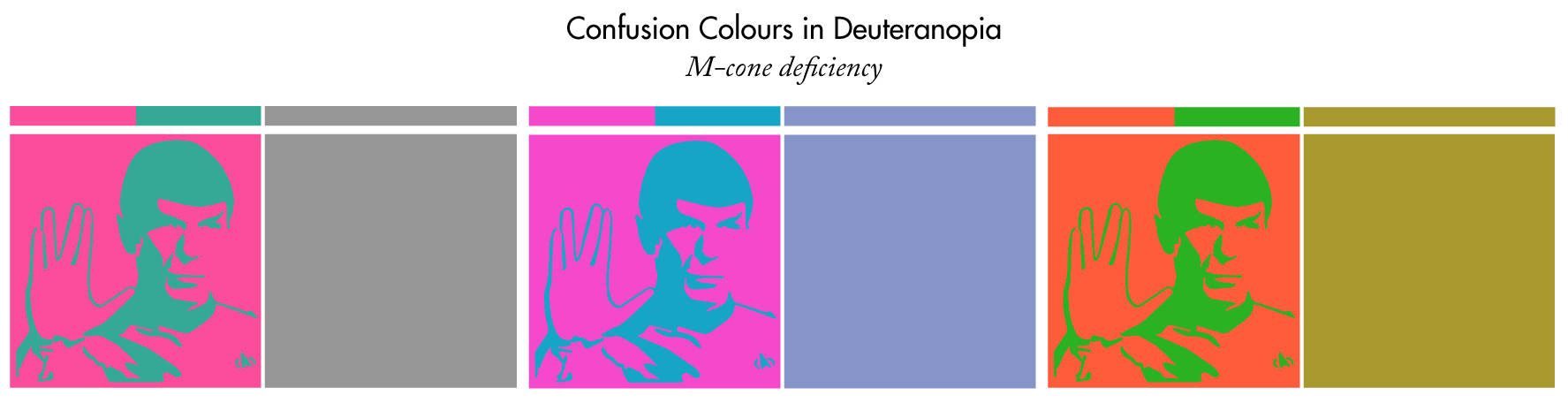

For example, if you have deuteranopia, you cannot distinguish the three colour pairs (among many others) and Spock becomes invisible.
If you have deuteranomaly (partial deficit), you may still see Spock but with some amount of difficulty.
I have a lot of resources about colour blindness. Take a look at my colour palettes for colour blindness and a deep dive into the math of colour blindness, on which this year's `\pi` Day art is based.
Ishihara's Tests for Colour Deficiency are drawings of numbers (and other shapes) that make use of confusion colours to test for colour deficiency.
I've spent quite a bit of time photographing these plates and providing an authentic and colour-accurate set of images for each plate.

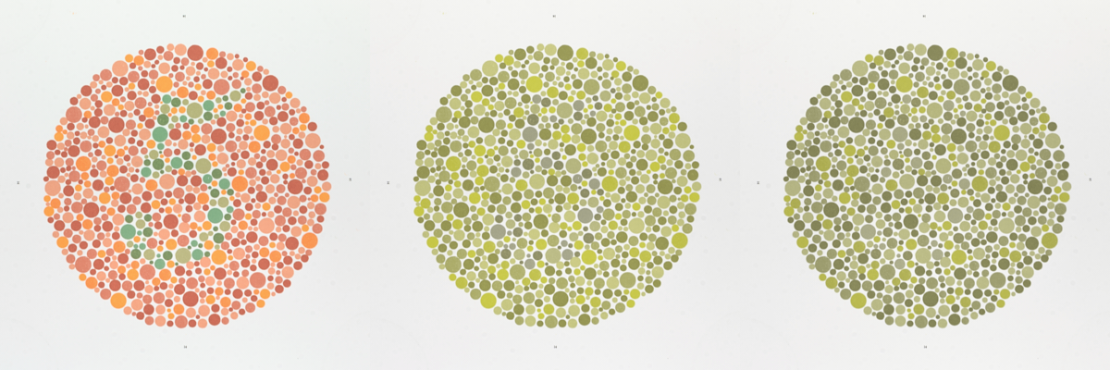

If you've seen Ishihara's test plates, you've probably seen one of the vanishing plates.
On these plates, the number of obvious to someone with normal vision but not visible to someone with colour blindness.
The choice of colours on transformation plates is relatively easy to understand — confusion colours are used for both the background and the digit.

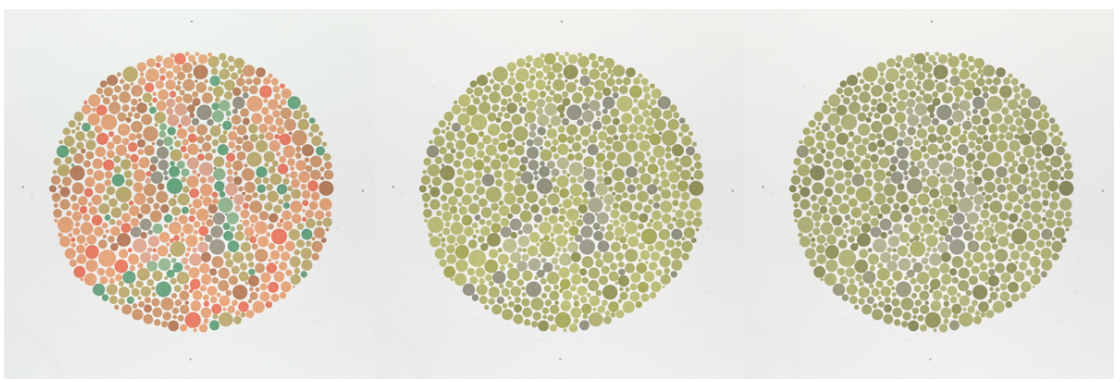

In Ishihara's 38-plate book, there are 4 mysterious “hidden” plates.
These are truly vexing — they hide the digit from someone with normal vision but make it visible to someone with colour blindness.
This year's `\pi` Day art is inspired by these plates.
This year's art pays respects to Ishihara's Tests for Colour Deficiency and the Japanese adage “To show something, hide something.”.

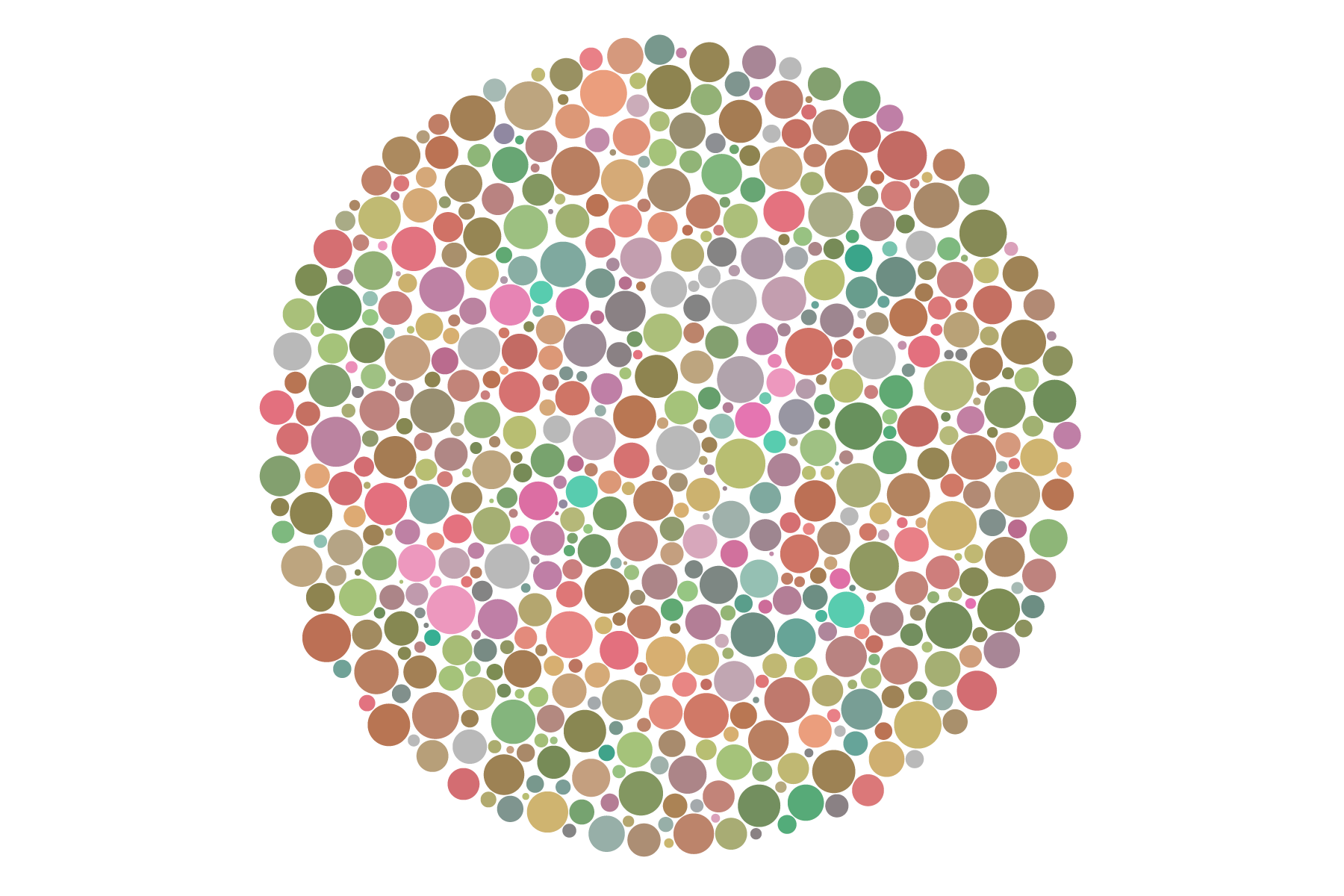

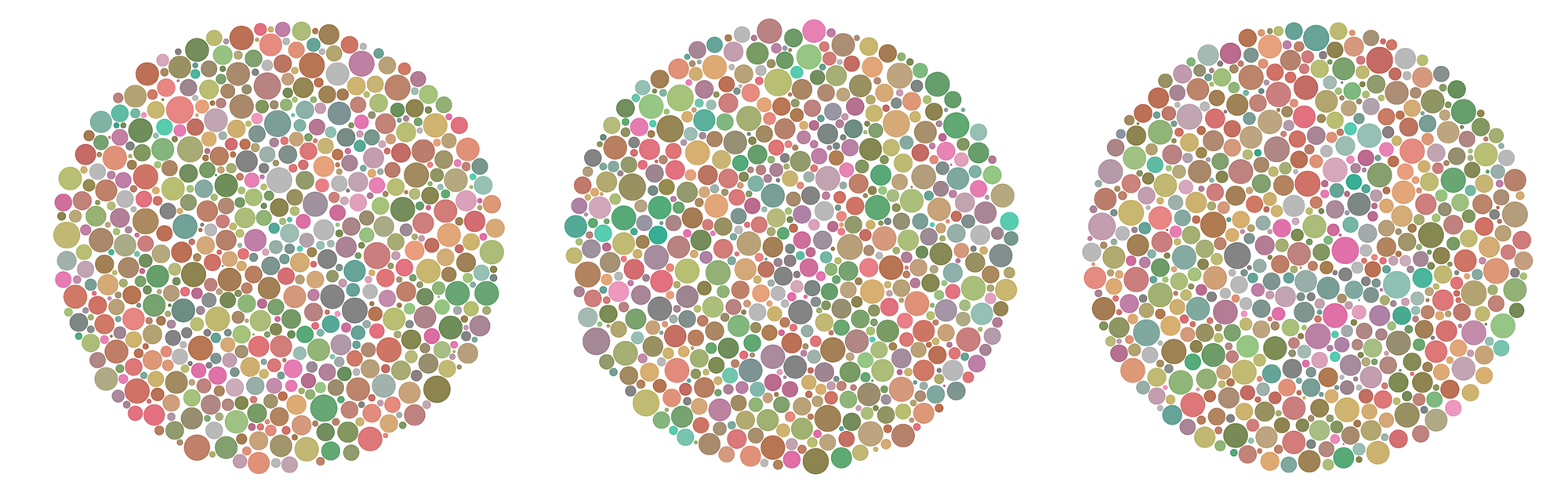

What did you see? Hint: it's `\pi` day.
If you have normal vision, there's a small chance that you saw something.
If you have deuteranopia, there's a large chance that you saw something.
The effect is subtle. We all see what we want to see.

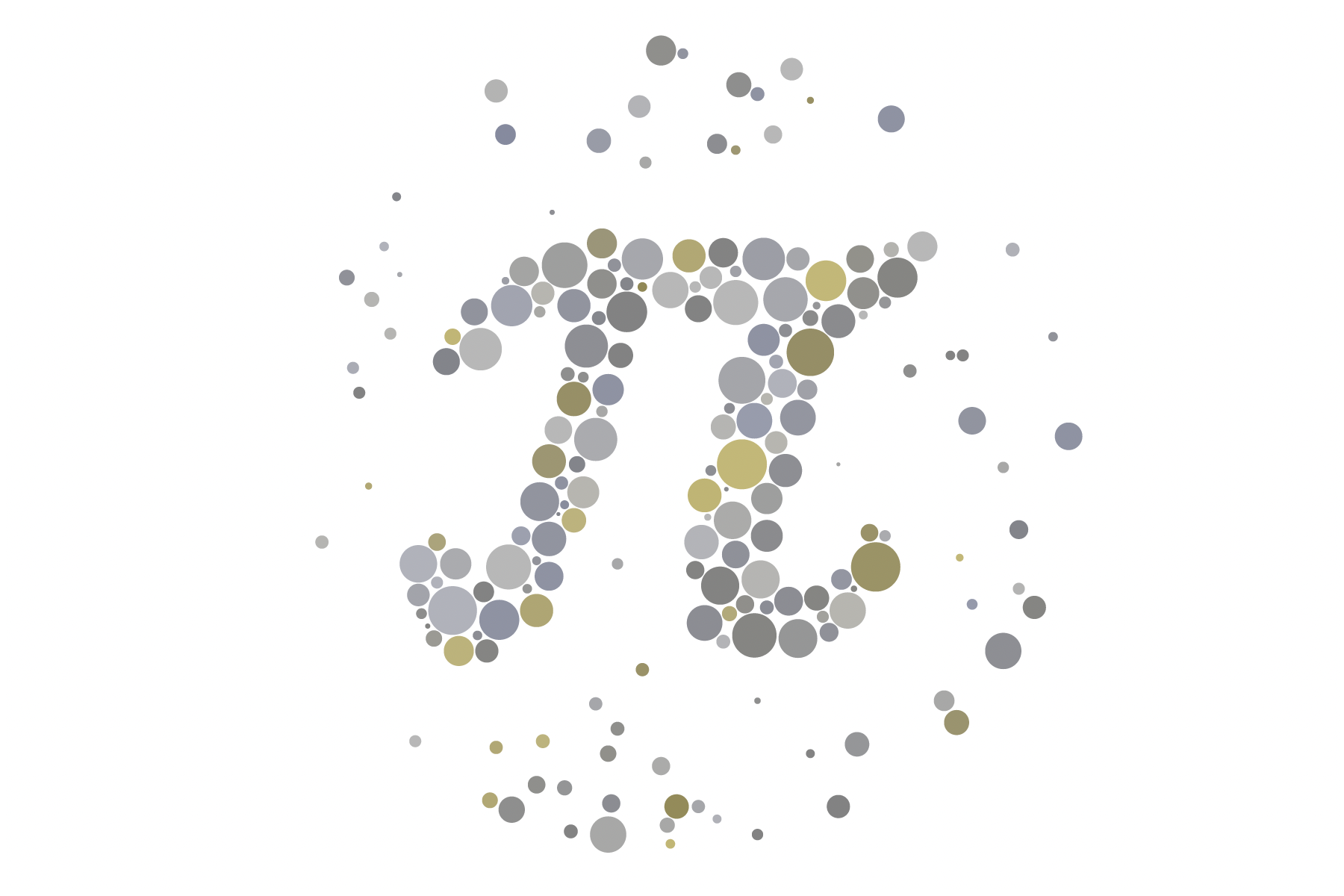

In the pattern is the symbol for `\pi` (surprise!). The dots that make up the digit (a few spill outside too) are colored with colors largely sampled from a line of confusion — a set of colors that look identical to someone with colour blindness.

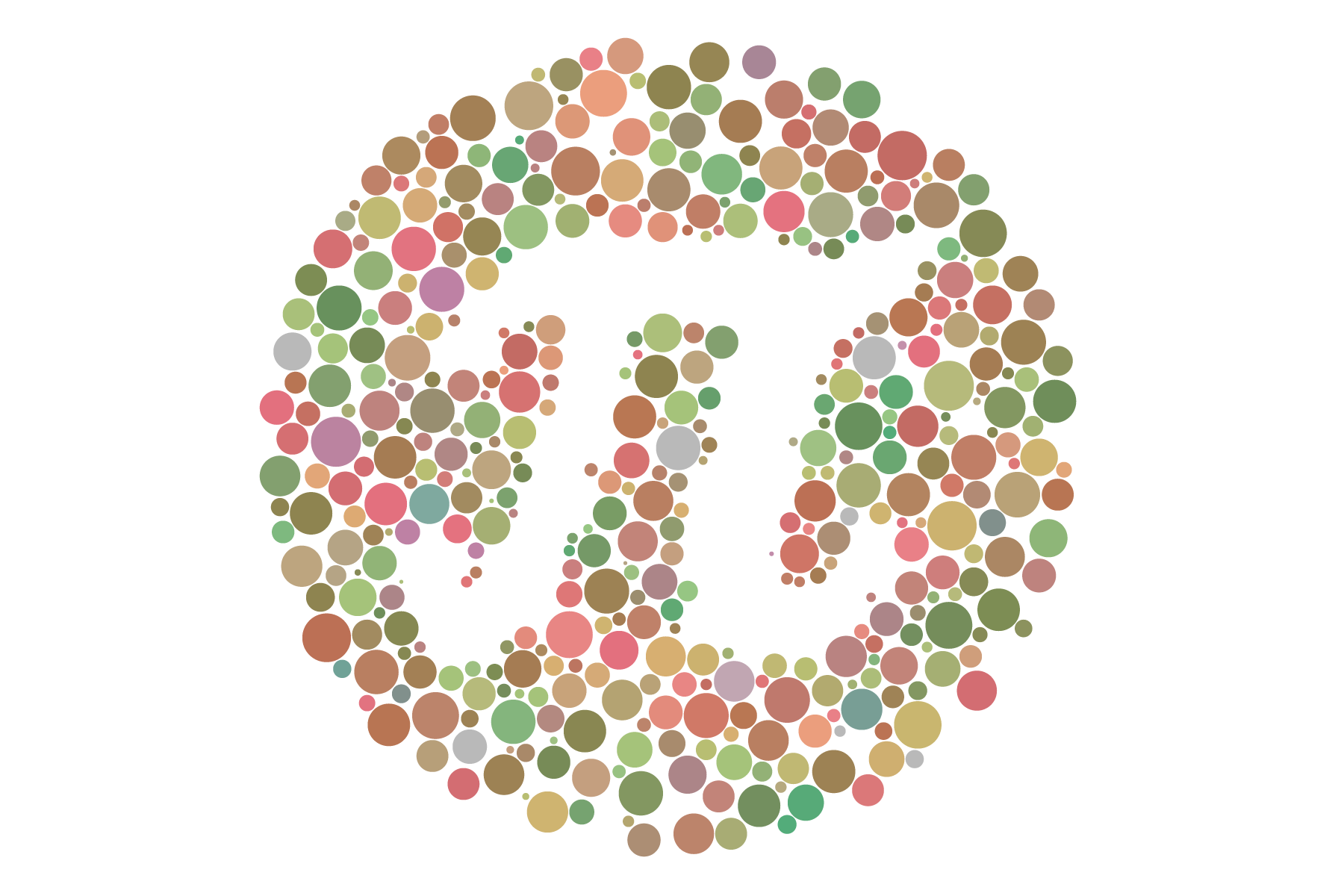

The background of the art is made up of colors sampled from a different line of confusion.

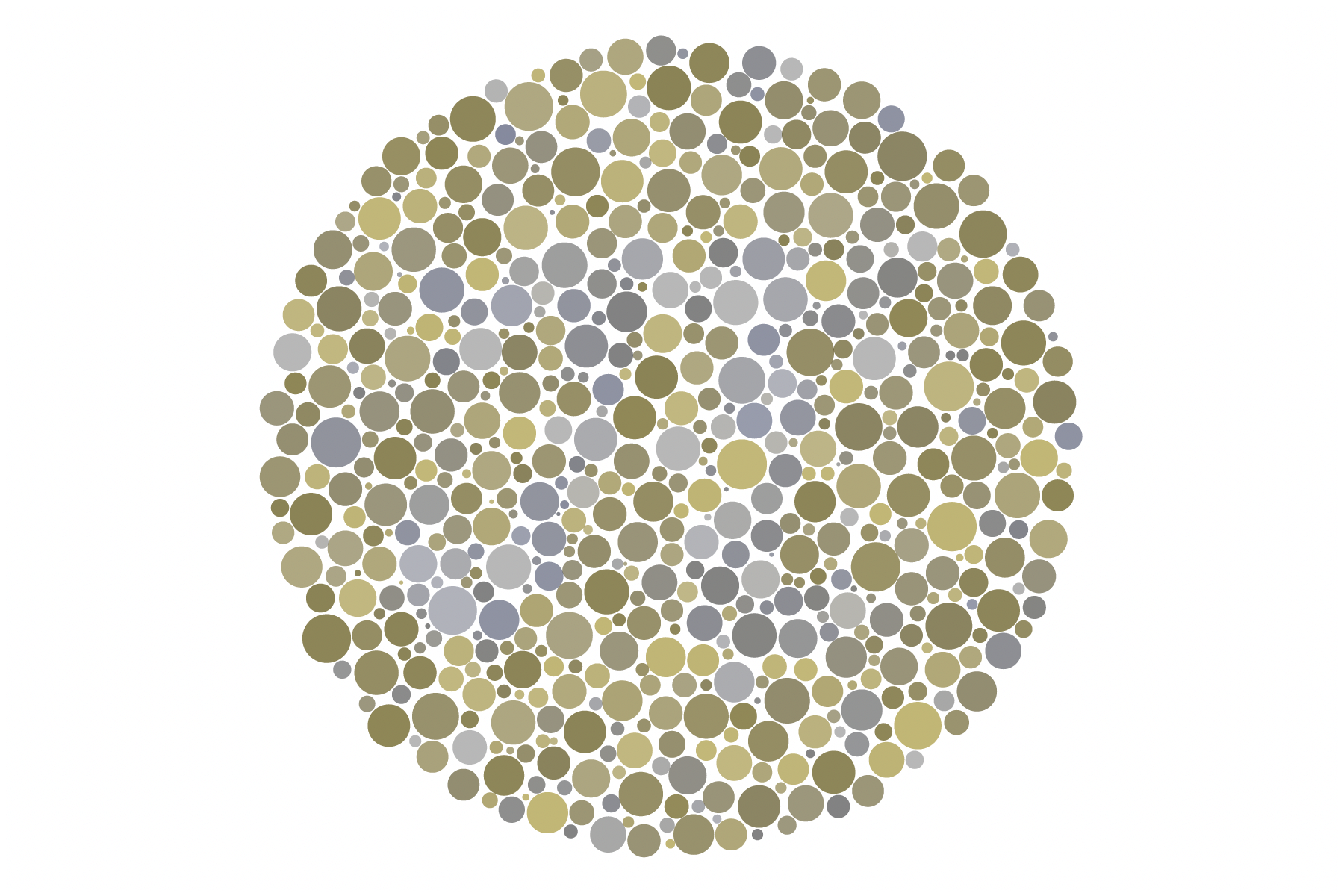

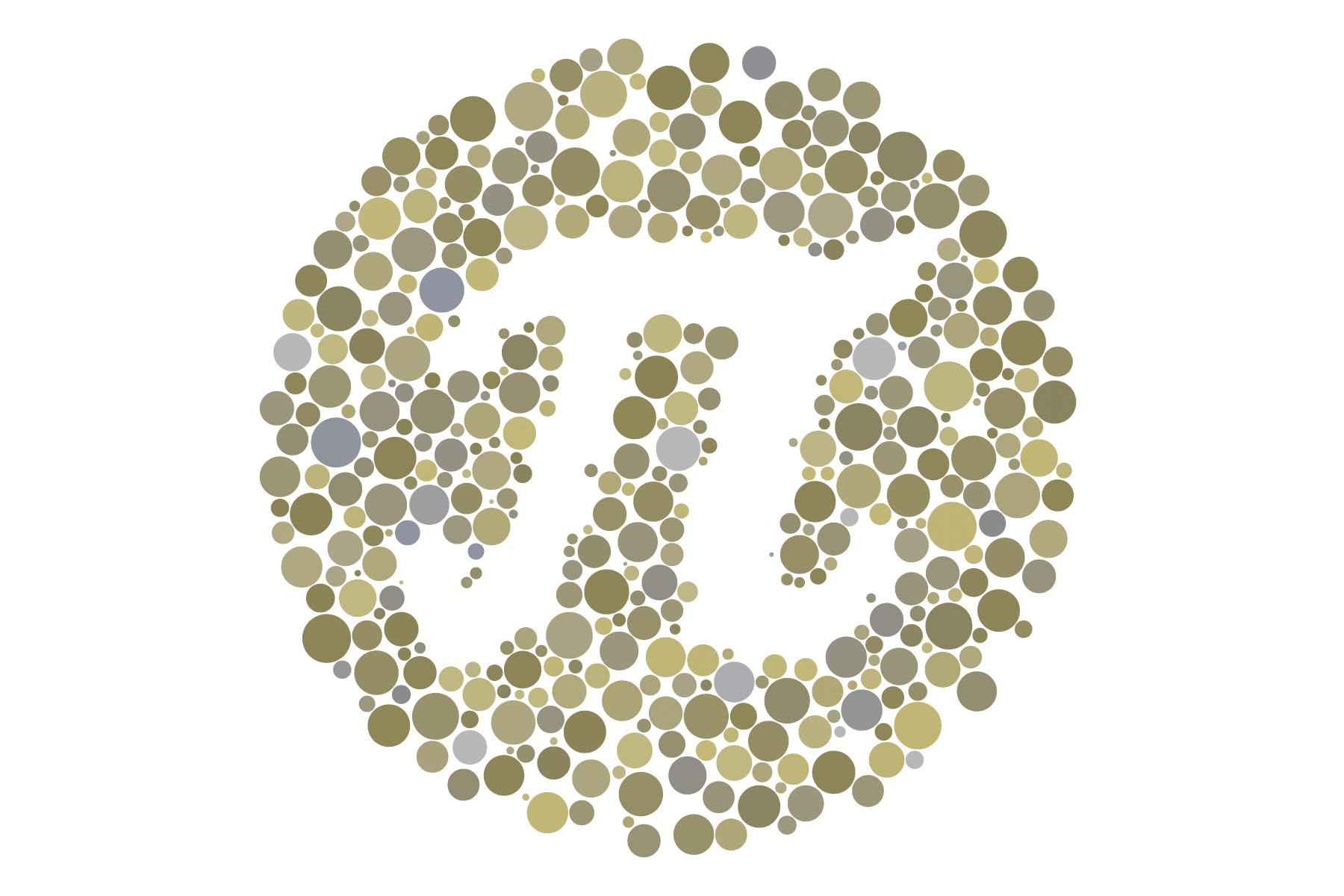

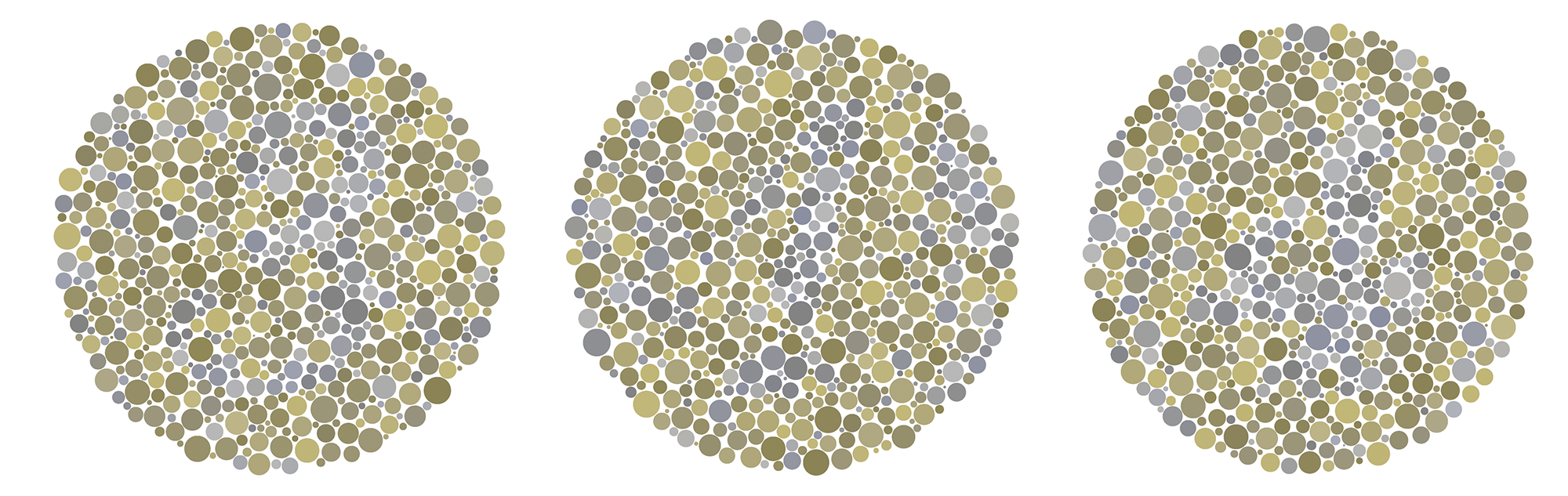

This is what the whole thing looks like to a normal eye and a deuteranope.
Confused yet? Read about the method behind the art and look at the posters.
There is a variety of posters (and postcards) that will hurt your eyes.
Here's one of them — a 50 cm × 70 cm test where a positive is a negative.
Happy 2026 π Day—
Art for the 5%
Celebrate π Day (March 14th) and enjoy the art — but only if you're part of the 5%.
Go ahead, see what you can't see.
